600mm 1000mm IP68 24VDC LED Linear Underwater Lights Stainless Steel

Name: 600mm 1000mm IP68 24VDC LED Linear Underwater Lights Stainless Steel
Brand: COMI LIGHTING
Price: 1 USD

China 600mm 1000mm IP68 24VDC LED Linear Underwater Lights Stainless Steel wholesale

Brand Name : COMI LIGHTING

Model Number : B4XLA1257S B4XLA1257R

Certification : CE ROSH

Place of Origin : China

MOQ : 1 psc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000PCS/MONTH

Delivery Time : 5-8 working days

Packaging Details : 1piece/Box

Product name : LED Linear Underwater Pool Lights

Input voltage : 24VDC

LED source : 12LEDs or 18LEDs for 600mm, and 24 or 36LEDs for 1000mm.

Color Tem. : single color, tunable white, RGB, RGBW

Beam angle : 8°, 25°, 45°,60°

Material : stainless steel SUS 304 housing&accessories

Certificate : CE, RoHS.

IP Rate : IP68

Warranty : 2 Years warranty.

Contact Now

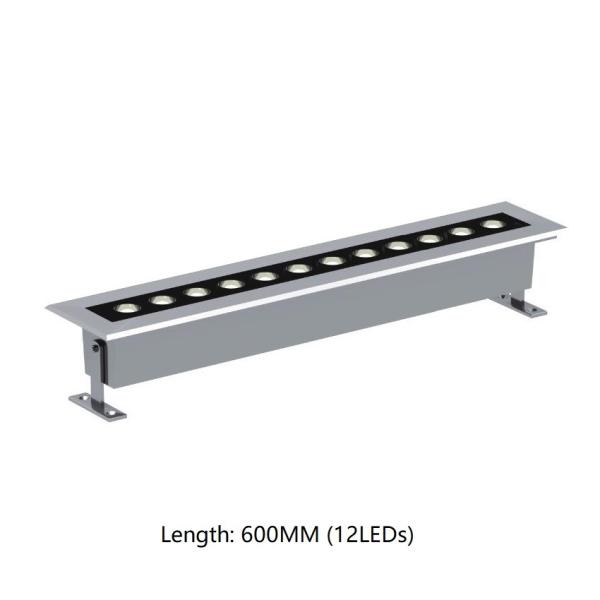

600mm or 1000mm IP68 LED Linear Underwater Pool Lights

The COMI LANDSCAPE LIGHTING B4XL-series IP68 LED underwater light made of SUS 304 stainless steel which provides 600mm and 1000mm for option. The product can be surface mounted by brackets or recessed mounted by mounting sleeve(SUS 304 stainless steel or PVC). IP68 rate design is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Features and Benefits:
▪ 600mm and 1000mm length for options.

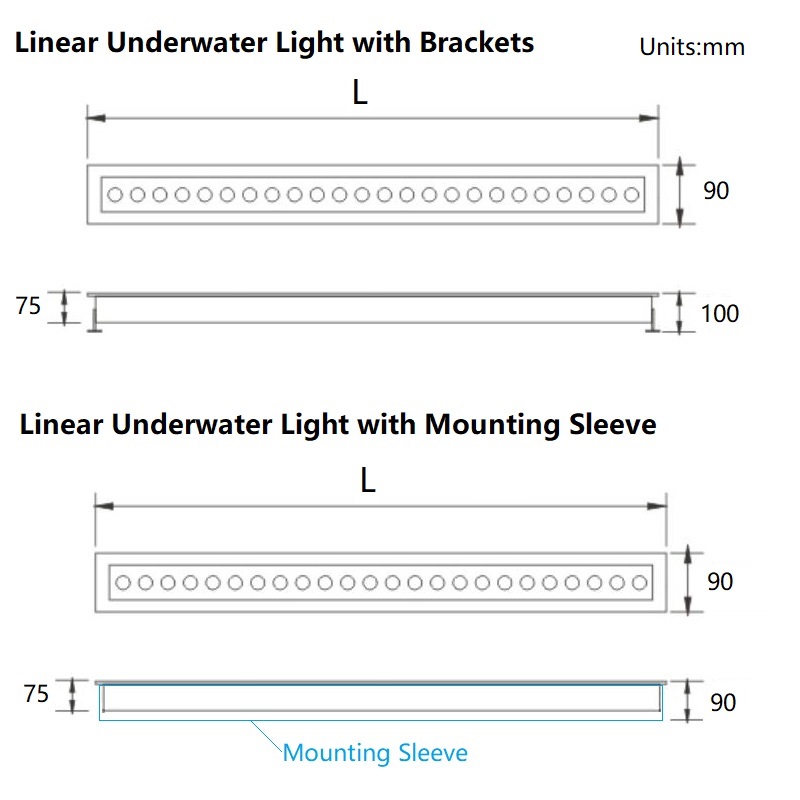

▪ Optional mounting methods:
(1) Surface mounted by brackets (Standard).
(2) Wall or ground recessed mounted by mounting sleeve (also named as back box).
▪ Light quantity: 12LEDs or 18LEDs for 600mm, and 24 or 36LEDs for 1000mm.
▪ LED: 1W/LED,2W/LED(mono or tunable white), 3W/LED(RGB), or 4W/LED(RGBW).
▪ Color:single color, tunable white, RGB, RGBW.
▪ 24VDC operating voltage.
▪ Beam angle: 8°, 25°, 45°,60°.
▪ Completely stainless steel SUS 304 housing&accessories;
(PVC for mounting sleeve is available).
▪ Non-dimmable. Optional DALI, 1-10 V, PWM Dimmable or DMX512 support.
▪ IP68 waterproof,underwater installation in depth less than 1meter.
▪ Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪ CE, RoHS.
▪ 2 Years warranty.

Technical Parameters:

Item Number	Length	Light Source	Color or CCT(K)	CRI (Ra)	Beam Angle	Input Volage	Typical Current	Power (W)	Luminous Flux(LM)	IK Rate
B4XLA1257S B4XLA1257R	600MM	12pcs×2W CREE LED	Single Color	Ra≥80	8°, 25°, 45°,60°	24VDC	1000mA	24W	Cool White=1815LM Warm White=1529LM	10
B4XLA1218S B4XLA1218R	600MM	12pcs×3W RGB 3-in-1 LED	RGB 3-in-1 Full Color	/	8°, 25°, 45°,60°	24VDC	R=450mA G=525mA B=525mA	36W	864LM	10
B4XLA1857S B4XLA1857R	600MM	18pcs×2W CREE LED	Single Color	Ra≥80	8°, 25°, 45°,60°	24VDC	1500mA	36W	Cool White=2812LM Warm White=2295LM	10
B4XLA1818S B4XLA1818R	600MM	18pcs×3W RGB 3-in-1 LED	RGB 3-in-1 Full Color	/	8°, 25°, 45°,60°	24VDC	R=600mA G=700mA B=700mA	48W	1100LM	10
B4XLB2457S B4XLB2457R	1000MM	24pcs×2W CREE LED	Single Color	Ra≥80	8°, 25°, 45°,60°	24VDC	2000mA	48W	Cool White=3556LM Warm White=3060LM	10
B4XLB2418S B4XLB2418R	1000MM	24pcs×3W RGB 3-in-1 LED	RGB 3-in-1 Full Color	/	8°, 25°, 45°,60°	24VDC	R=800mA G=1100mA B=1100mA	72W	1788LM	10
B4XLB3657S B4XLB3657R	1000MM	36pcs×1.5W CREE LED	Single Color	Ra≥80	8°, 25°, 45°,60°	24VDC	2000mA	48W	Cool White=3781LM Warm White=3162LM	10
B4XLB3618S B4XLB3618R	1000MM	36pcs×1.5W RGB 3-in-1 LED	RGB 3-in-1 Full Color	/	8°, 25°, 45°,60°	24VDC	R=800mA G=1100mA B=1100mA	72W	1825LM	10

Notes:

1.The last letter "S" in item number stands for the linear light is with bracket for surface mount, and "R" stands for the Linear light is with mounting sleeve [also named as Pre-buried back box, made of 304 stainless steel(default accessory) or PVC for options] for recessed mount.
2. The light source can be 1W/LED.
3. Color: single color, tunable white, RGB, or RGBW. RGB color can be 4R/4G/4B, 6R/6G/6B,8R/8G/B, or 12R/12G/12B, Please inquire tunable white or RGBW color separately.
4. The light source of 1000mm linear light can be with 18LEDs, please inquire separately.
5. The product is optional DMX512 controllable support upon request.
6. Specifications are subjected to change without notice.
