Features and Benefits:

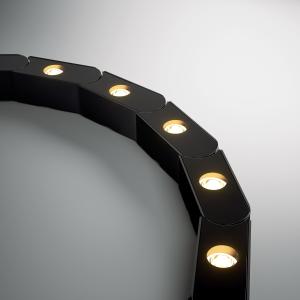

▪ Flexible and horizontal bending.
▪ Modular design: min. unit length 334mm (6 pcs LEDs/unit).
▪ Input voltage: 24VDC
▪ Power: 24W/meter.
▪ Light Efficiency: 48.5LM/W (3000K, 30°x60°)
▪ Beam angle: 24°, 30°, 40°, 60°, 24°x45°, 30°x60°.
▪ Color:single color.
▪ Multiple lens or light window type for options :
(1) Standard: clear optical lens;
(2) Optical honeycomb louver;
▪ Max. Length when Single Feed: 4 Meters.
▪ Length available: 334mm (8W), 668mm (16W), 1002mm (24W), 1333.3mm (32W).
▪ Uniform brightness for entire run length 4meters.
▪ Materials: Aluminum +Tempered Glass Cover.
▪ Installation way:(1) Surface mounted, or
(2) Fixed bracket and Angle adjustable bracket for option (order separately).
▪ Control support: ON/OFF, dimming with remote 0-10V/DALI/DMX512 dimming driver;
▪ Lumen Maintenance: 70.000 Hours L70@25°C, 50.000 Hours L70@50°C
▪ IP67 and IK06, suitable for outdoor lighting.
▪ Operation Temperature: -25°C to +50°C.
▪ Compliance with CE, RoHs.
▪ 3 Years Warranty.
Technical Parameter for IP67 Outdoor Flexible LED Wall Grazer:
| Item Number | Light Color | CRI (Ra) | Control Mode | Beam Angle | Light Source | Input Voltage | Power
Conumption(W) | Luminous Flux (LM)±8% | IK Rate |
| AW06-XX | Single | Ra>80 | ON/OFF, PWM Dimming | 24°, 30°, 40°, 60°, 24°x45°, 30°x60° | 3535 SMD LED.
6LEDs/unit
(334mm),
or 18LEDs/meter | 24VDC | 8W/333.3mm, or 24W/meter | Cool White=1386LM Warm White=1164LM (L=1000MM, 3000K, 30°x60°) | IK06 |
Notes:
1. "XX" in item No. stands for different light color, Light color for this Outdoor IP67 horizontal bending flexible LED Grazer:
(1) Single color available:2200K, 2700K,3000K,3500K,4000K,4500K,5000K,6500K,Green(520-530nm),Blue (455-465nm);
2. The above luminous flux is for beam angle 30°x60° and warm white color only.
3. Luminous flux output of this IP67 outdoor flexible modular LED linear wall washer is vary from different CRI, light color, beam angle and optical lens&light window type.
4. Standard CRI80+, and CRI90+ are available upon request.
5. Specificiation and availabity are subjected to change without notice.
Application areas:

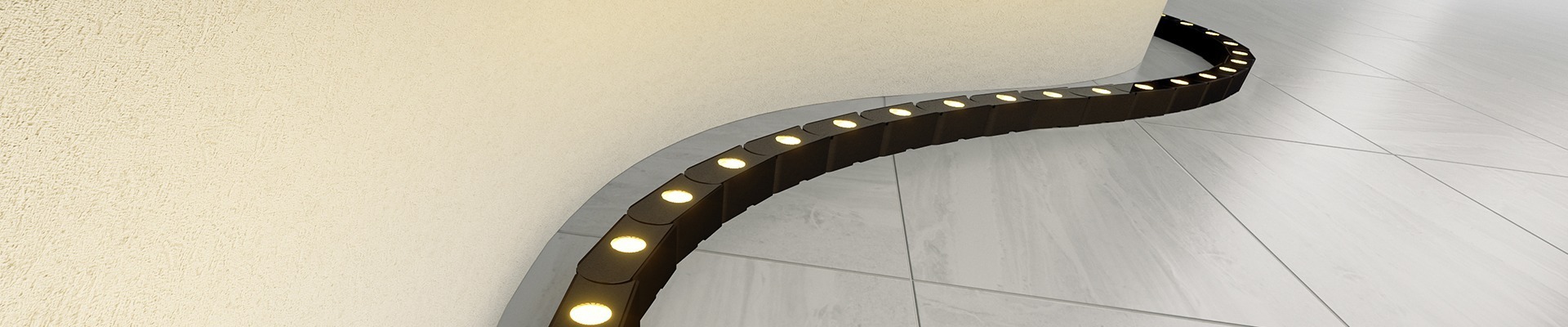

Wall grazing, cove light, wall wash, residential, hospitality, restaurants, museums.

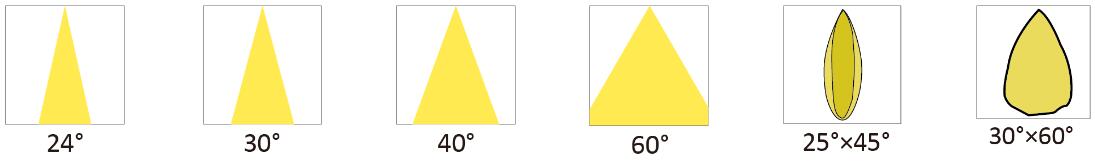

Beam Angle for Options:
